Print Hall

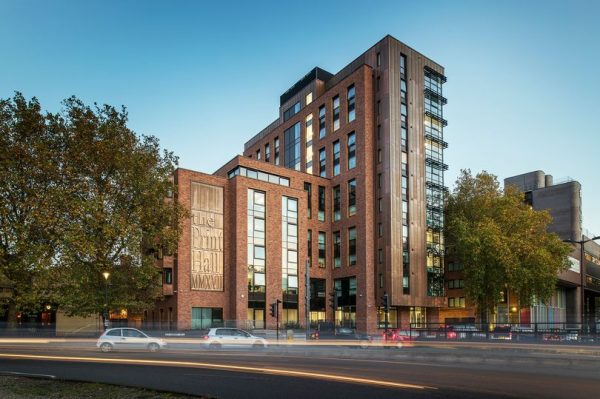

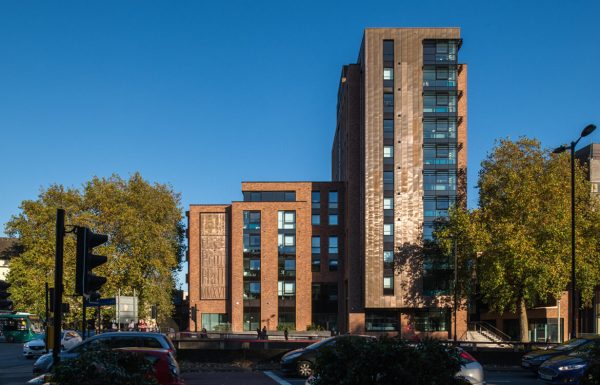

Three student accommodation buildings, the tallest being 11 storeys, with a wide range of amenity facilities on the site of the former Bristol Evening Post printing works.
Key features

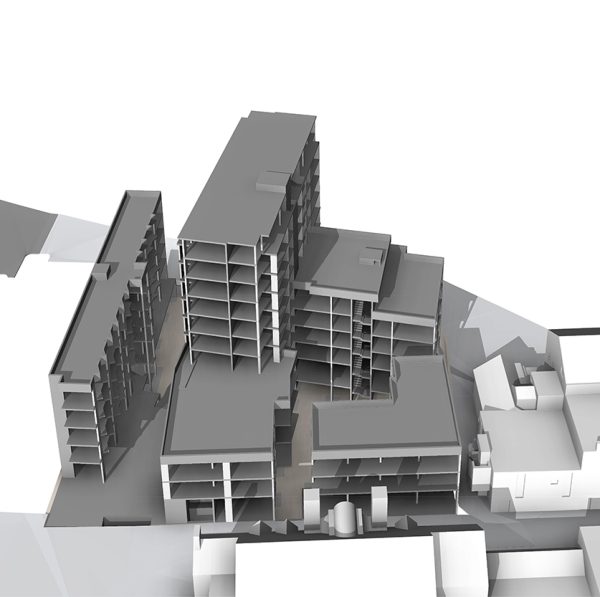

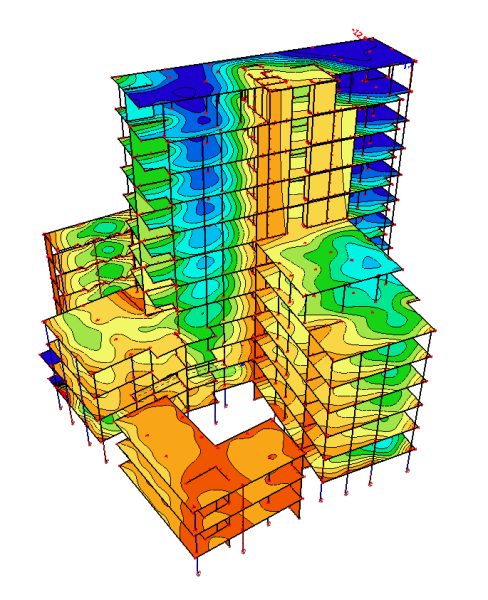

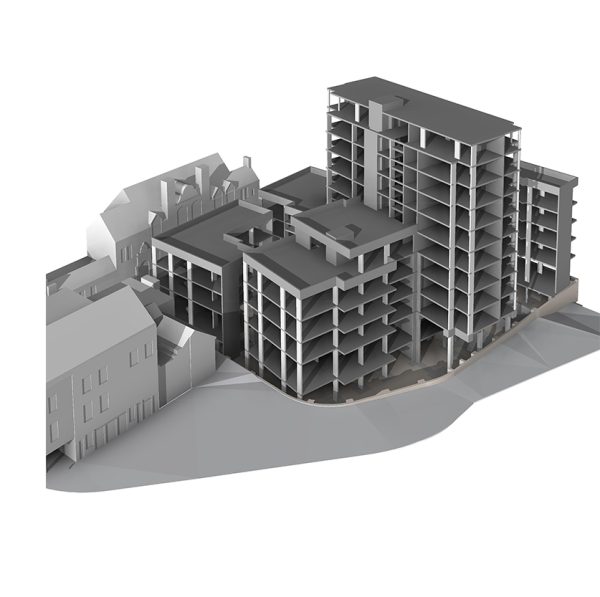

Hybrid steel and concrete structure
The lower levels are RC framed, with eight storeys of cold-formed lightweight steel framing built from a transfer slab at level three.
Enabling different column grids

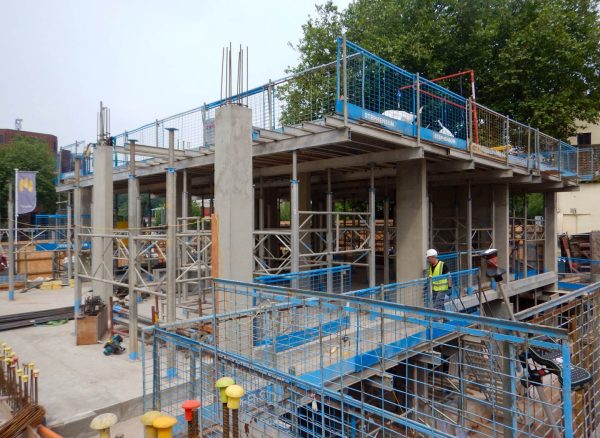

A grid of 800mm-thick RC transfer beams at first floor allows a change to the column grid between the residential and communal levels, negating the need for downstand beams in the upper levels.

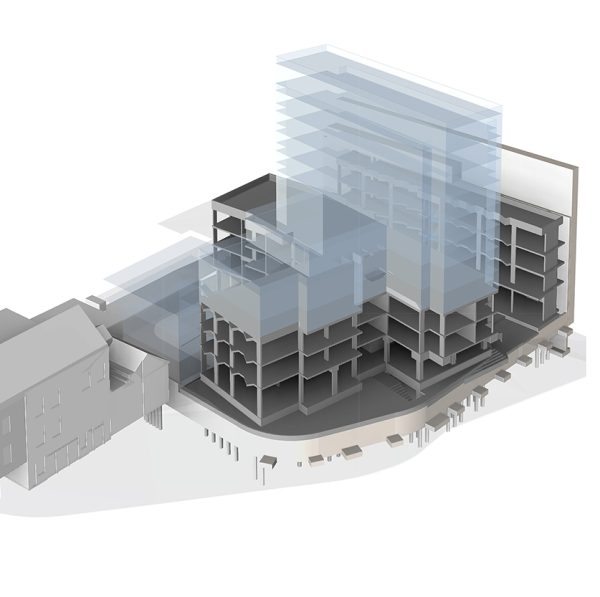

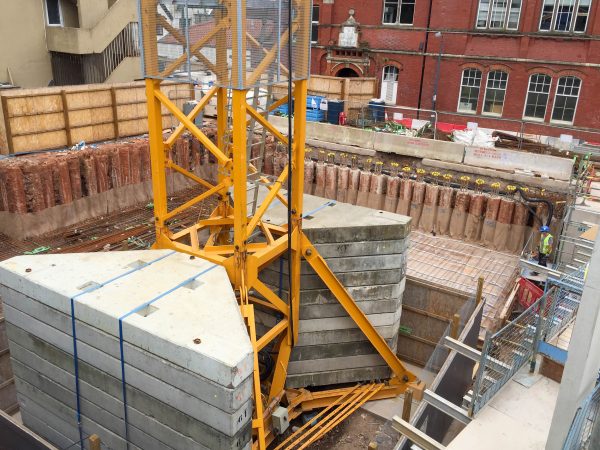

Reusing basement slab and retaining walls
The scheme was built within an existing basement footprint, with the existing slab and retaining walls justified and re-used.

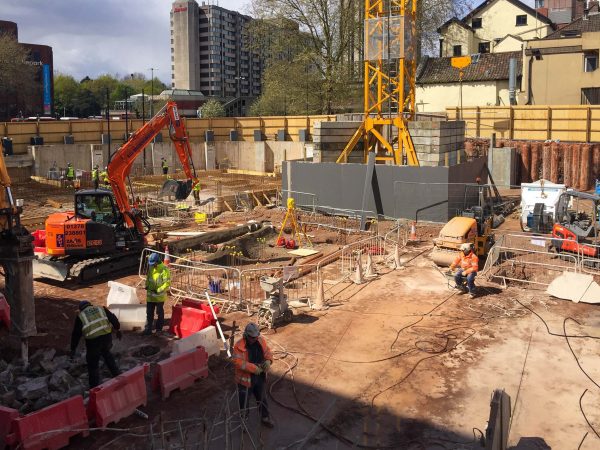

Installing new piles beneath existing slab
Holes were cored through the existing slab and 2m-thick RC press beds to install new piles.
Pedestrian-friendly links through the site
A new podium slab over the existing basement provides a pedestrian through-link, which is also designed for fire tender access.
